Global definitions and macros. More...

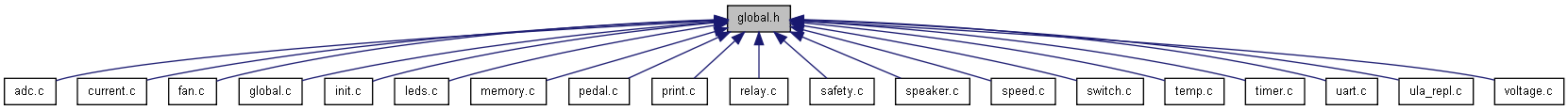

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Defines | |
| #define | EXTERN extern |
| #define | WHEEL_SIZE 1280U |
| This defines the wheel circumference in millimeters. | |
| #define | SPEEDLIMIT_MAX 250U |
| This value defines the maximum speed at which the motor can be activated in pedelec mode while the driver is pedaling. | |
| #define | SPEEDLIMIT_MIN 30U |
| This value defines the minimum speed required to enable the motor. | |
| #define | DEFAULT_MAGNET_NUMBER_TACHO 1U |
| This value defines the default number of magnets attached to activate the tacho reed switch. | |
| #define | DEFAULT_MAGNET_NUMBER_PEDAL 1U |
| This value defines the default number of magnets attached to activate the pedal reed switch. | |
| #define | RXD_PORT PORTD |
| #define | RXD_DDR DDRD |
| #define | RXD_BIT PD0 |
| #define | TXD_PORT PORTD |
| #define | TXD_DDR DDRD |
| #define | TXD_BIT PD1 |
| #define | LED1_PORT PORTB |
| #define | LED1_DDR DDRB |
| #define | LED1_BIT PB1 |
| #define | LED2_PORT PORTB |
| #define | LED2_DDR DDRB |
| #define | LED2_BIT PB0 |
| #define | LED3_PORT PORTD |
| #define | LED3_DDR DDRD |
| #define | LED3_BIT PD7 |
| #define | LED4_PORT PORTD |
| #define | LED4_DDR DDRD |
| #define | LED4_BIT PD6 |
| #define | LED5_PORT PORTD |
| #define | LED5_DDR DDRD |
| #define | LED5_BIT PD4 |
| #define | MUX_VOLT_PORT PORTC |
| #define | MUX_VOLT_DDR DDRC |
| #define | MUX_VOLT_BIT PC4 |
| #define | MUX_CURR_PORT PORTC |
| #define | MUX_CURR_DDR DDRC |
| #define | MUX_CURR_BIT PC5 |
| #define | SPEAKER_PORT PORTB |
| #define | SPEAKER_DDR DDRB |
| #define | SPEAKER_BIT PB2 |
| #define | RELAY_PORT PORTD |
| #define | RELAY_DDR DDRD |
| #define | RELAY_BIT PD5 |
| #define | FAN_PORT PORTC |
| #define | FAN_DDR DDRC |
| #define | FAN_BIT PC3 |
| #define | INT0_PORT PORTD |
| #define | INT0_DDR DDRD |
| #define | INT0_BIT PD2 |
| #define | INT1_PORT PORTD |
| #define | INT1_DDR DDRD |
| #define | INT1_BIT PD3 |
| #define | VREF_PORT PORTC |
| #define | VREF_DDR DDRC |
| #define | VREF_BIT 7 |
| #define | CSBASE_PORT PORTC |
| #define | CSBASE_DDR DDRC |
| #define | CSBASE_BIT PC1 |
| #define | R3_PORT PORTC |
| #define | R3_DDR DDRC |
| #define | R3_BIT PC0 |
| #define | VTH_PORT PORTC |
| #define | VTH_DDR DDRC |
| #define | VTH_BIT PC2 |
| #define | SWITCH_PORT PORTC |
| #define | SWITCH_DDR DDRC |
| #define | SWITCH_BIT 6 |
| #define | ADC_SWITCH ADC6 |
| #define | ADC_TEMPERATURE ADC2 |
| #define | ADC_VOLTAGE ADC0 |
| #define | ADC_VREF ADC7 |
| #define | ADC_CURRENT ADC1 |
| #define | MAX_CURRENT 523U |
| This value defines the maximum current as ADC value. | |
| #define | VALUE_TEMP_FAN 45U |
| This value defines the fan activation temperature. | |
| #define | VALUE_TEMP_WARN 70U |
| This value defines temperature warning threshold. | |
| #define | VALUE_TEMP_ERROR 80U |
| This value defines temperature error threshold. | |
| #define | ONE_MINUTE_MS ((UINT32)60000UL) |
| This value is just a difinition for one minute in milliseconds. | |
| #define | FW_VERSION 1172U |
| This value defines the firmware version which will be stored in flash memory. | |
| #define | APPLICATION_CRC 0x5C751A3FUL |
| This value defines the firmware CRC32 checksum version which will be stored in flash memory. | |
| #define | CRC32POLY 0xEDB88320UL |
| #define | STATIC static |
| #define | LOCAL_STATIC static |
| #define | CONST const |
| #define | VOLATILE volatile |
| #define | HIGH_BYTE(x) ((UINT8) (x >> 8U)) |
| This macro returns the higher byte of an UINT16 value. | |
| #define | LOW_BYTE(x) ((UINT8) x) |
| This macro returns the lower byte of an UINT16 value. | |
| #define | LED1_ON() LED1_PORT &= ~(1U << LED1_BIT); |
| Macro function to turn LED1 on. | |
| #define | LED1_OFF() LED1_PORT |= (1U << LED1_BIT); |
| Macro function to turn LED1 off. | |
| #define | LED2_ON() LED2_PORT &= ~(1U << LED2_BIT); |
| Macro function to turn LED2 on. | |
| #define | LED2_OFF() LED2_PORT |= (1U << LED2_BIT); |
| Macro function to turn LED2 off. | |
| #define | LED3_ON() LED3_PORT &= ~(1U << LED3_BIT); |
| Macro function to turn LED3 on. | |
| #define | LED3_OFF() LED3_PORT |= (1U << LED3_BIT); |
| Macro function to turn LED3 off. | |
| #define | LED4_ON() LED4_PORT &= ~(1U << LED4_BIT); |
| Macro function to turn LED4 on. | |
| #define | LED4_OFF() LED4_PORT |= (1U << LED4_BIT); |
| Macro function to turn LED4 off. | |
| #define | LED5_ON() LED5_PORT &= ~(1U << LED5_BIT); |
| Macro function to turn LED5 on. | |
| #define | LED5_OFF() LED5_PORT |= (1U << LED5_BIT); |
| Macro function to turn LED5 off. | |
| #define | ALL_LEDS_ON() |
| Short macro to turn all LEDs on (used for flashing) | |
| #define | ALL_LEDS_OFF() |
| Short macro to turn all LEDs off (used for flashing) | |
| #define | MUX_CURR() |
| Macro to switch the multiplexer to current mode. | |
| #define | MUX_VOLT() |
| Macro to switch the multiplexer to voltage mode. | |
Variables | |
| const UINT32 | g_u32ApplicationCRC |
| UINT32 variable to store the firmware checksum at a dedicated memory position. | |
| const UINT16 | g_u16ApplicationVersion |
| UINT16 variable to store the application firmware version at a dedicated memory position. | |
| const S_MEM_STRUCTRUE | sMemoryEEPROM |
| Variable to reserve memory for structure in EEPROM. | |
Detailed Description
- Copyright:
- Creative Commons by-nc-sa 3.0 (http://creativecommons.org/licenses/by-nc-sa/3.0/)
Definition in file global.h.
